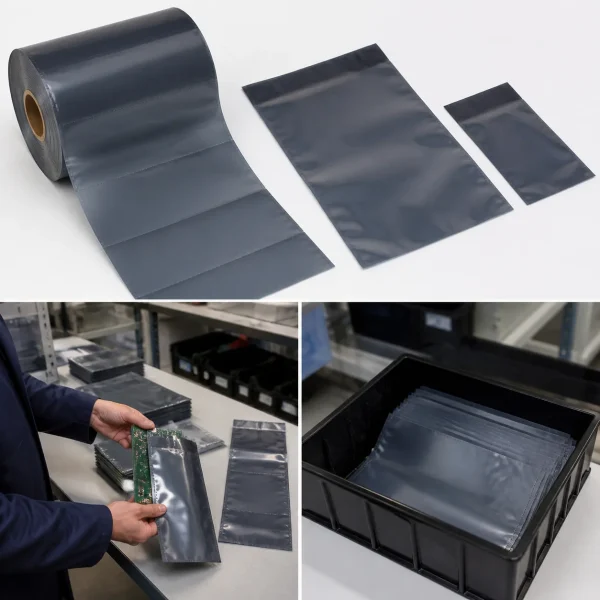

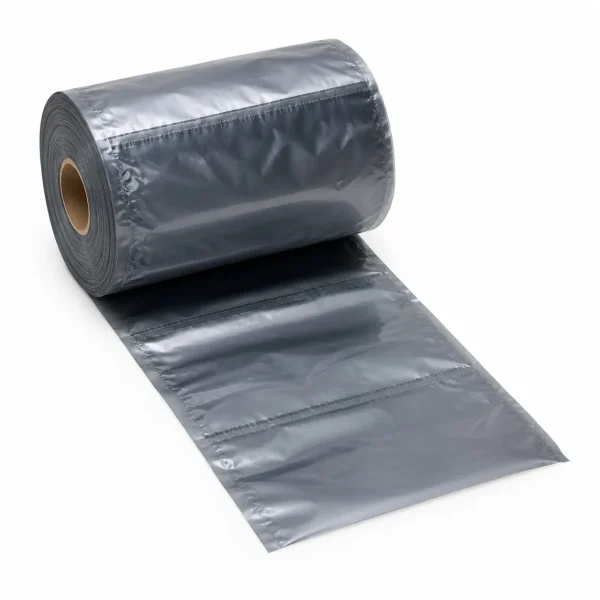

ESD protective pre-opened bags on a roll are roll-fed bags developed for electronic components and other devices with documented electrostatic-protection requirements. Bag dimensions, protective material structure, thickness, perforation, printing and roll configuration are specified around the packed component, handling process, packaging equipment and required ESD function. The protection mechanism and acceptance criteria must be confirmed for each project.
Key Specifications
| Product format | Pre-opened bags supplied on a roll |
|---|---|
| Primary application | Packaging electronic components and devices with stated electrostatic-protection requirements |
| Size examples | 3 × 4 in through 10 × 15 in; see the available-size table below |
| Custom dimensions | Specified from component size, filling clearance, sealing method, packaging equipment and application requirements |
| Material structure | Selected after review of the required ESD protection mechanism, handling environment and customer acceptance criteria |
| Thickness | Quote-specific; the required mil value and its availability for the selected ESD structure must be confirmed |
| Appearance | Depends on the selected protective structure; confirm during technical review |

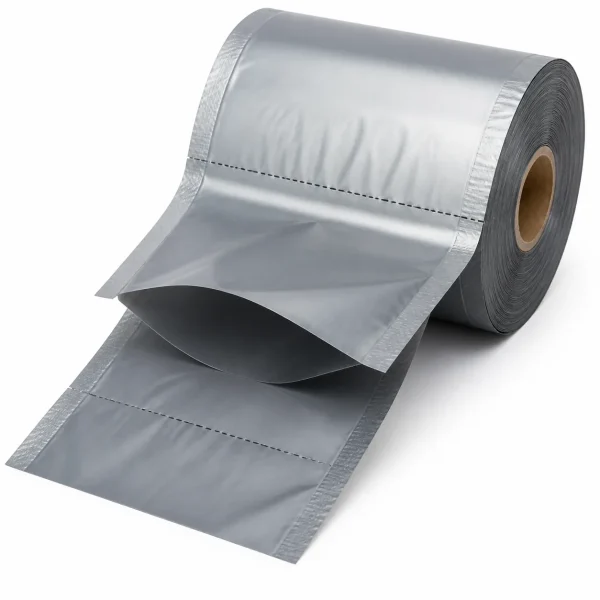

| Opening and separation | Pre-opened roll format with separation/perforation requirements confirmed for the packing process |
| Printing and identification | Quote-specific and subject to artwork, material and process review |
| Roll configuration | Core, roll quantity, winding and presentation requirements confirmed from equipment and handling data |
Available ESD Bag Sizes
The following dimensions are common producible examples for pre-opened bags. They are not fixed limits. For an ESD bag project, final dimensions must also suit the component, protective material structure, filling clearance, sealing process and packaging equipment.
| Width × Length (inches) | Approximate metric size | Example specification context |
|---|---|---|
| 3 × 4 in | 76 × 102 mm | Compact electronic parts |
| 4 × 6 in | 102 × 152 mm | Small component and connector packs |
| 4 × 8 in | 102 × 203 mm | Longer narrow electrical parts |
| 5 × 7 in | 127 × 178 mm | Component kits requiring additional width |
| 5 × 8 in | 127 × 203 mm | Cables, connectors or grouped parts |
| 6 × 8 in | 152 × 203 mm | Medium electronic assemblies |
| 6 × 10 in | 152 × 254 mm | Longer assemblies and electrical parts |
| 8 × 10 in | 203 × 254 mm | Larger component or PCB-related packs |
| 8 × 12 in | 203 × 305 mm | Larger assemblies requiring extra length |
| 10 × 12 in | 254 × 305 mm | Broad electronic assemblies |
| 10 × 15 in | 254 × 381 mm | Large-format component packaging |
Custom widths and lengths can be manufactured according to product dimensions, packaging equipment, filling, sealing, material and application requirements.
Product-Specific Features
- Roll-fed pre-opened presentation for repeatable component loading.
- Project-specific ESD protection objective rather than an assumed generic anti-static function.
- Dimensions selected around component geometry, clearance and sealing requirements.
- Perforation and roll presentation reviewed against manual, semi-automatic or automated packing methods.
- Printing and identification options reviewed for the selected material structure and artwork.

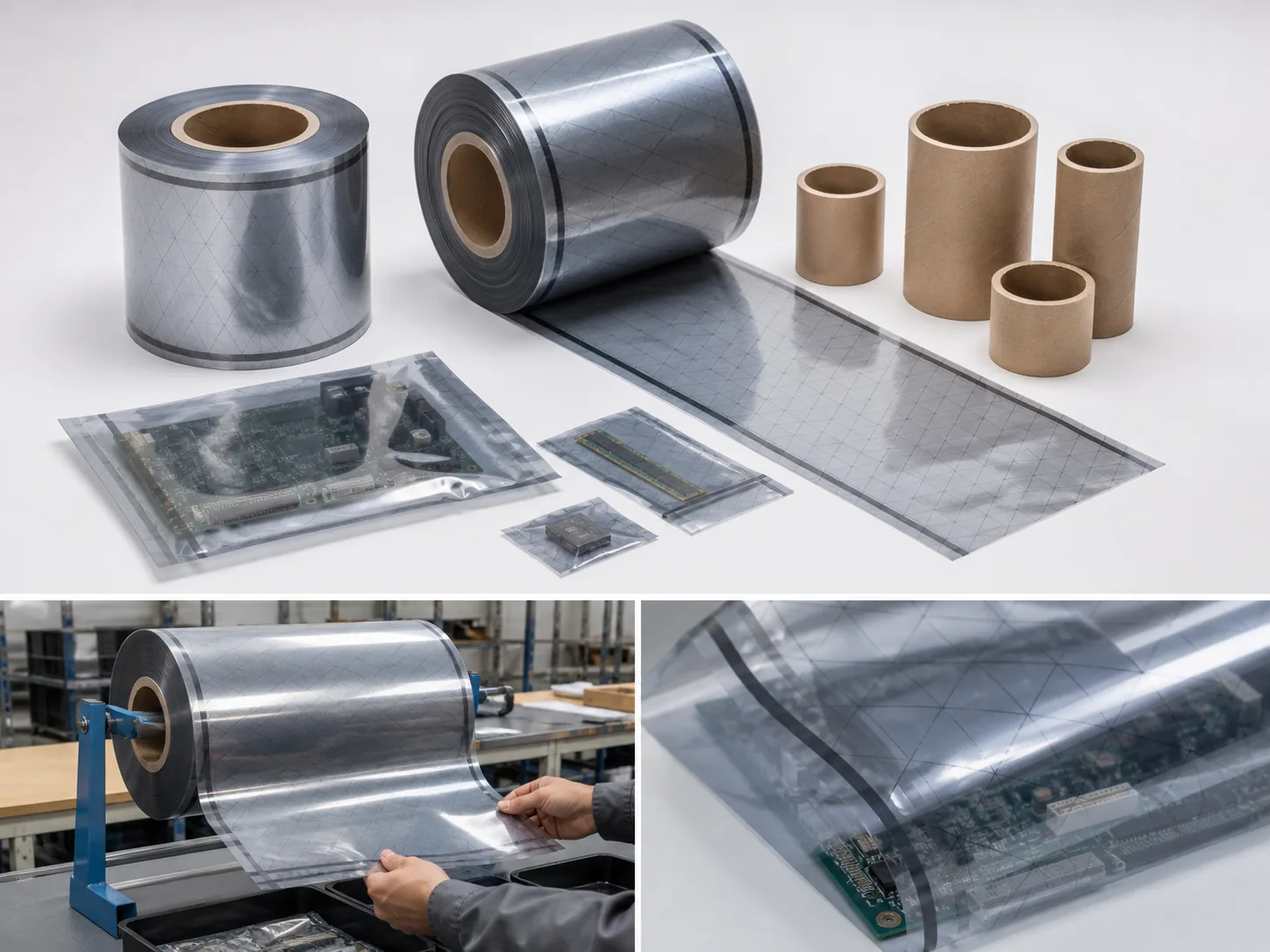

Custom Manufacturing Options
Buyers can specify width, length, required thickness, protective function, packed component, perforation, separation method, printing, roll presentation and quantity. Optional details such as venting or modified perforation must be evaluated against the selected ESD structure and application before they are quoted.

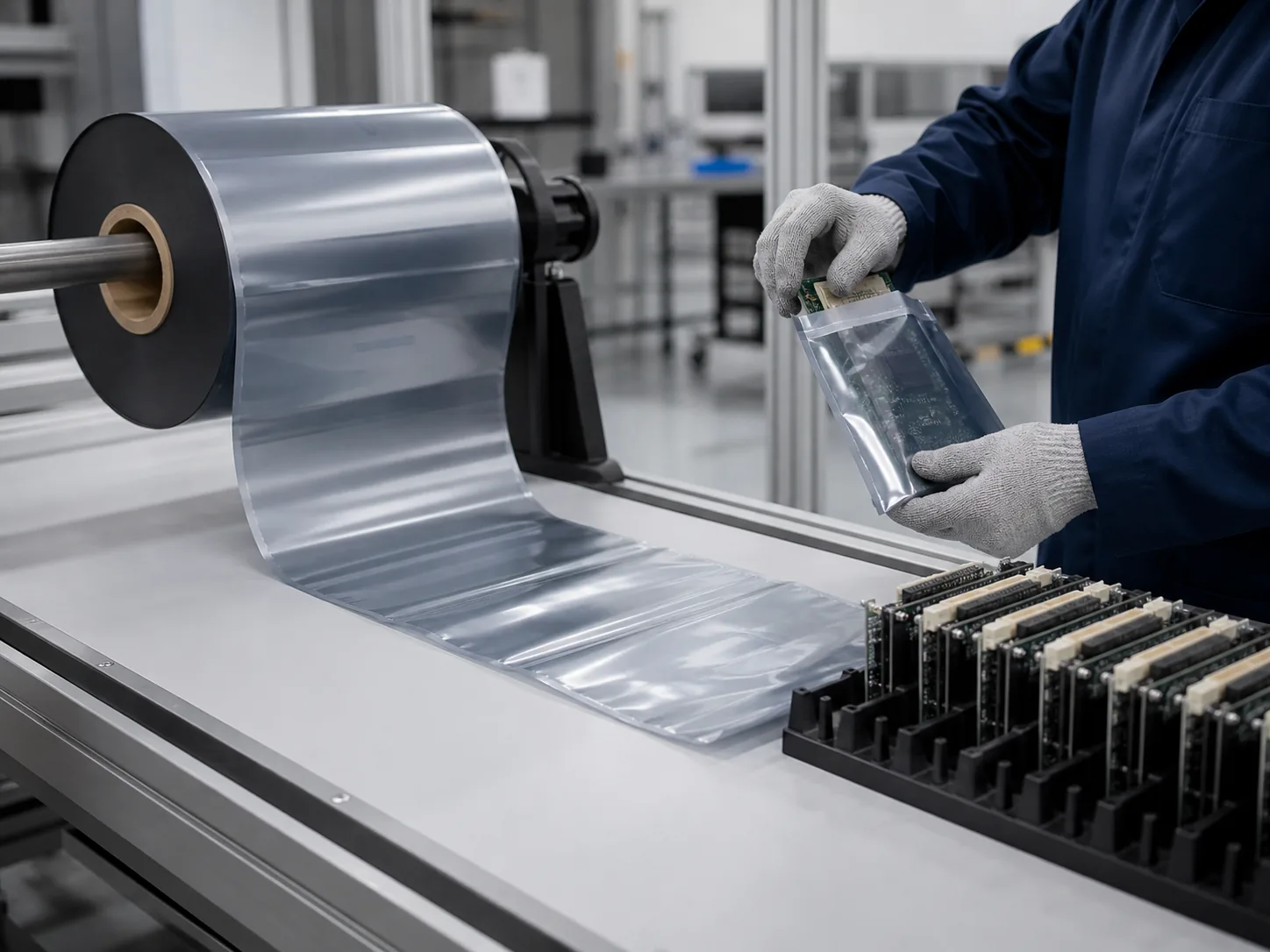

Automation and Packaging Equipment
ESD bags can be configured for roll-fed packaging processes, but compatibility is not universal. Provide the packaging-equipment type, bag-feed method, core or roll constraints, indexing requirements, sealing method, operating sequence and a current bag sample where available. These inputs allow the dimensions, perforation and roll configuration to be reviewed without claiming compatibility with an unsupported machine brand.

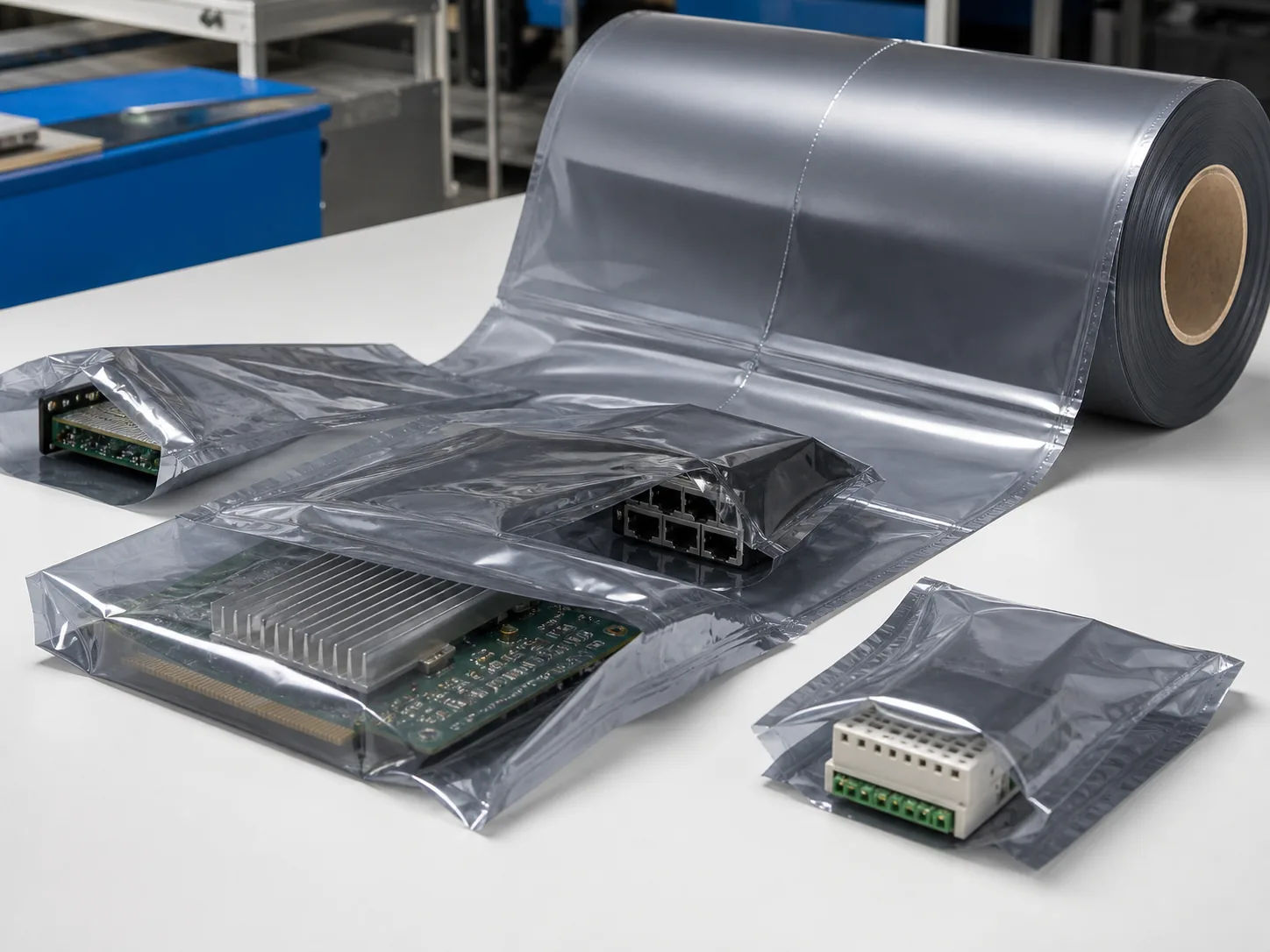

Applications
Typical projects include packaging connectors, cable assemblies, electrical parts, PCB-related components and other electronic devices for which the buyer has defined an electrostatic-protection requirement. The required protection mechanism must be matched to device sensitivity, handling, storage and downstream packing conditions; the product name alone does not establish performance.
How to Specify ESD Bags for a Quote
For a useful quotation, provide the bag width and length, requested thickness in mil or microns, packed component, required ESD function and acceptance criteria, material or construction requirement, quantity, printing or identification artwork, perforation and roll details, filling and sealing method, packaging-equipment information, required date and any sample or drawing available for review.
Frequently Asked Questions
What sizes are available for ESD pre-opened bags?
Common producible pre-opened bag examples include 3 × 4, 4 × 6, 4 × 8, 5 × 7, 5 × 8, 6 × 8, 6 × 10, 8 × 10, 8 × 12, 10 × 12 and 10 × 15 inches. Custom dimensions can be reviewed around the component, protective structure and packing process.
Can you manufacture 4 × 6, 6 × 8 or 8 × 10 ESD bags?
Those dimensions are within the verified pre-opened bag size examples. Their use with a particular ESD material structure, thickness and protection requirement must be confirmed during technical review.
Can ESD bag thickness be customized?
Thickness is a quotation variable. State the required mil or micron value, protective function and packed component so availability can be confirmed for the selected ESD structure. No thickness should be treated as standard until that review is complete.
Are these bags the same as general anti-static bags?
No equivalence is assumed. The required electrostatic-protection mechanism and acceptance criteria must be defined for the project so the appropriate structure can be evaluated.
Can the bags be configured for automated packaging equipment?
Roll dimensions, core, winding, perforation, indexing and sealing requirements can be reviewed against equipment data. Compatibility with a machine or process is confirmed only after technical assessment.
Can printing, vent holes or custom perforation be added?
Printing, venting and perforation requirements can be submitted for review. Availability depends on the selected protective structure, bag dimensions, equipment and required ESD function.
